Design of an extensible addressable LED controller to control up to two LED strips simultaneously
- ESP32 based controller running the open source WLED firmware
- Switched LED VCC rail and SMPS based power supply minimises standby current
- Board supports all ranges of LED tape from 5v up to 24v
- USB reprogramming facility allows future upgrades and custom firmware to be written
- Altium based PCB design
Pixel strip running off LED controller

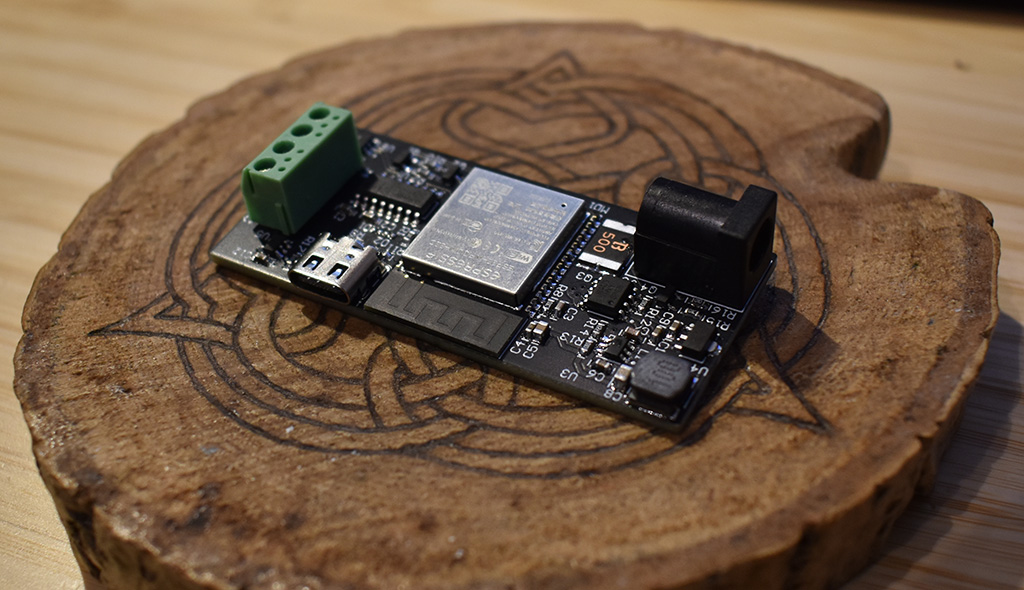

PCB

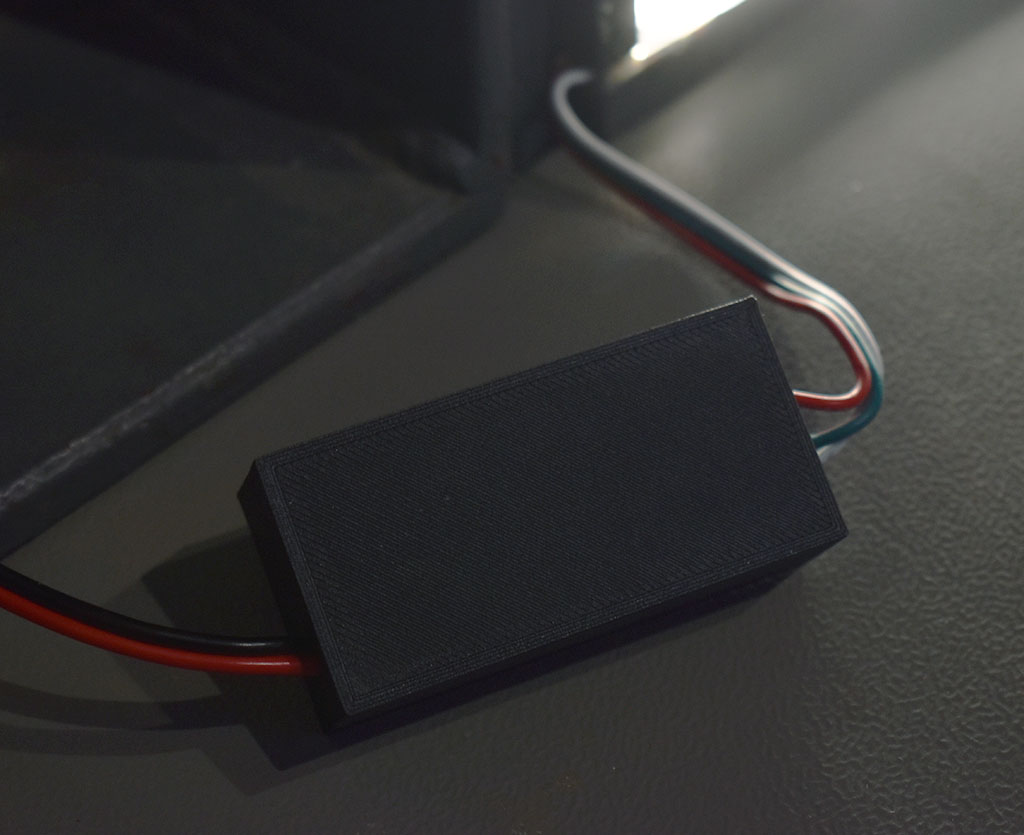

Cased Controller

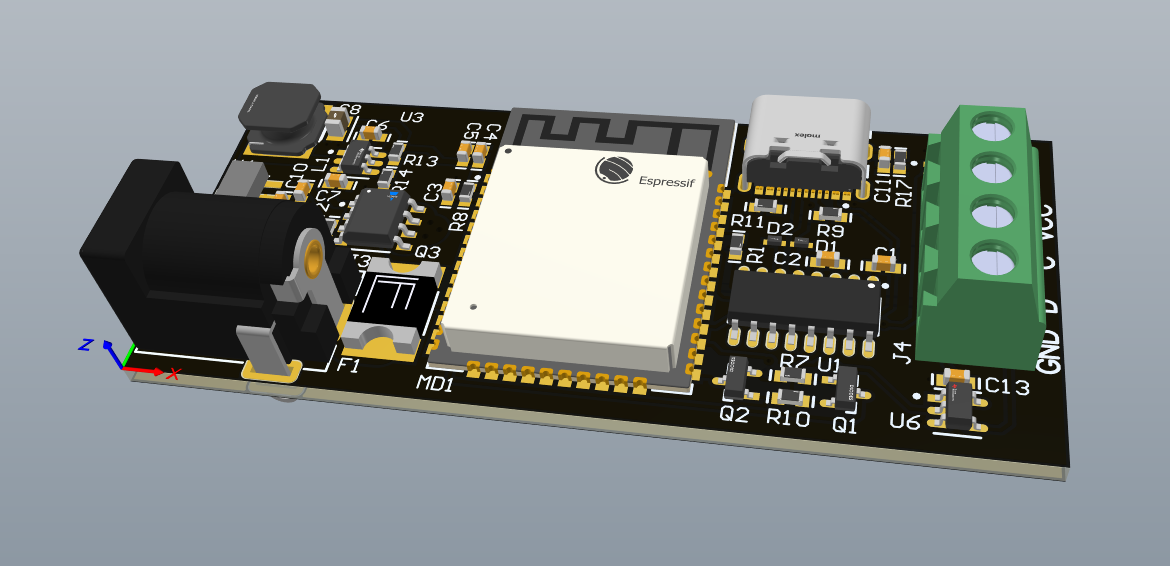

Altium PCB Design
