Tree Colour Magic – Arduino Shield

Design and assembly of an Arduino Shield for Tine Bech Studios, to simplify the on-site setup of her lighting installations.

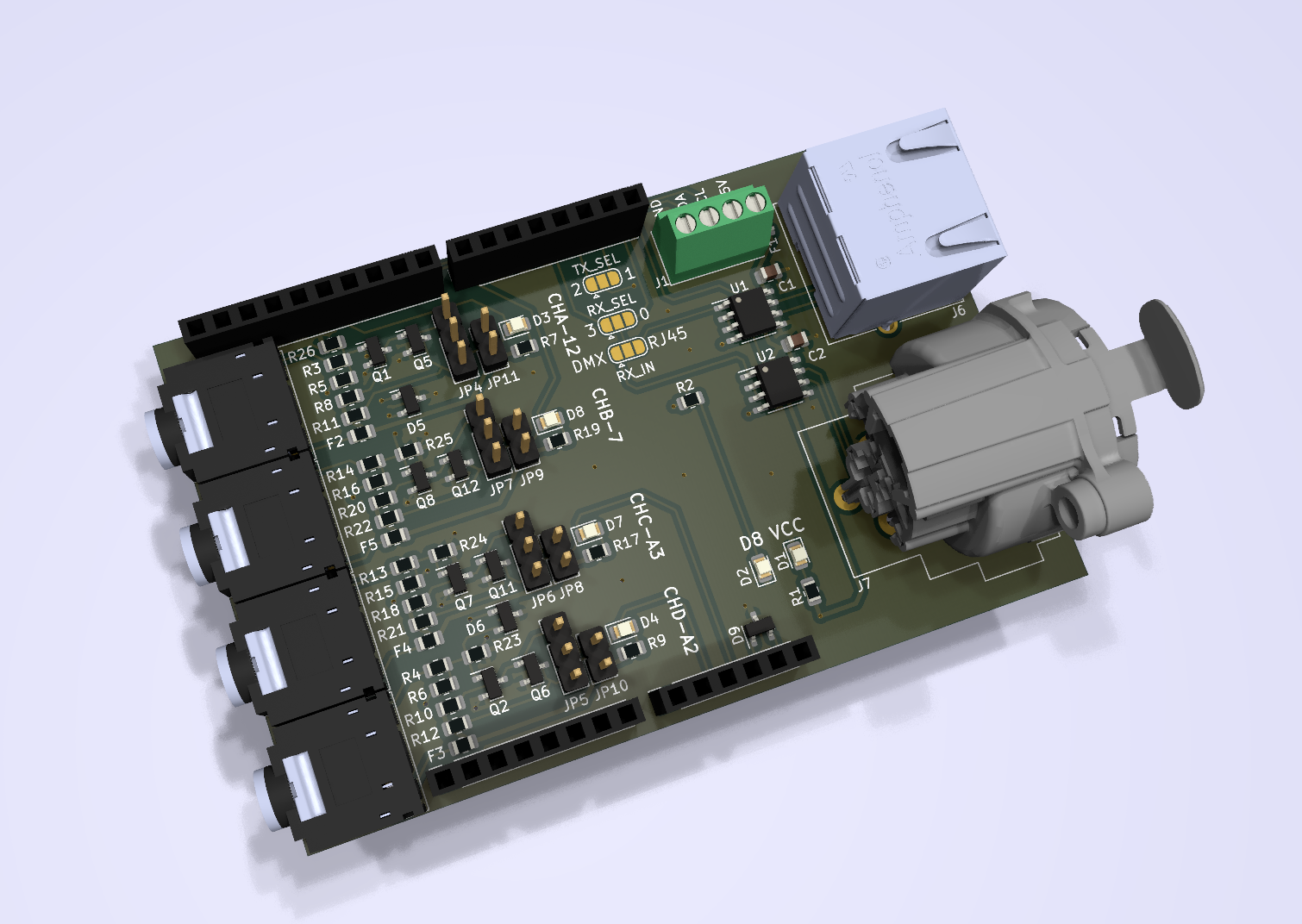

• 3.5mm audio jacks replaced the previous use of screw terminals, allowing easier setup in cold climates and by less technical engineers

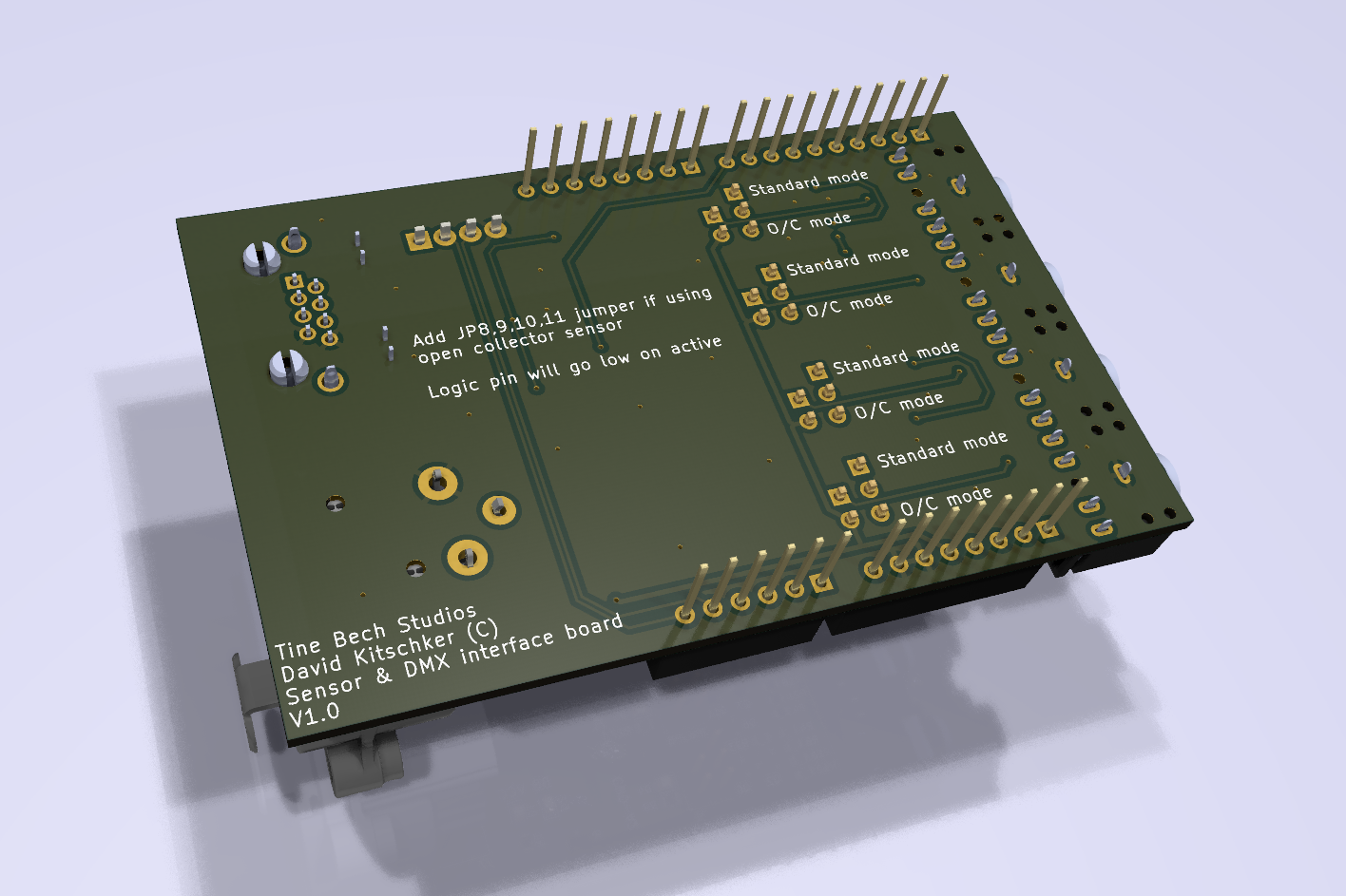

• Jumpers allow both open-collector and push-pull sensors to be used
• Input protection through the use of poly-fuses and ESD diodes allow use in wet climates
• Per-sensor LED indication allow detection of malfunctioning sensors
• DMX output capability to connect to standard lighting fixtures and smoke machines
