Design of a multi-port debug adapter to optimise the programming and refurbishment workflow of a consumer device.
- Integrated USB hub alongside 7 USB to serial converters allow up to 7 devices to connect to each adapter
- Individually programmed serial IDs allow the physical port and device name to replicate what is displayed in the programming software
- Support for charging the connected devices through the use of an external power adapter
- Custom front and back panels with aluminium extrusion create a rugged device whilst on the factory floor

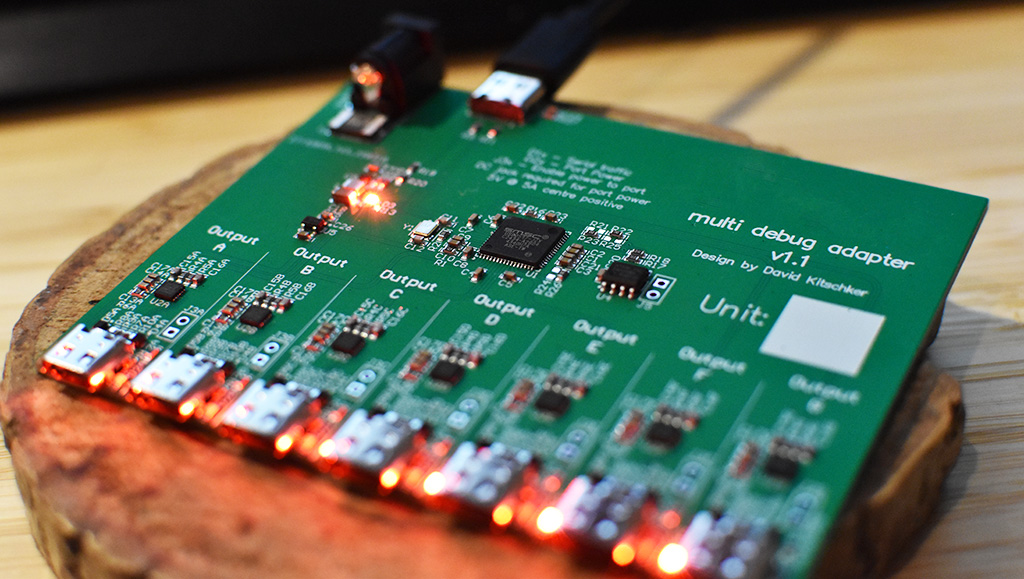

First power up of debug adapter

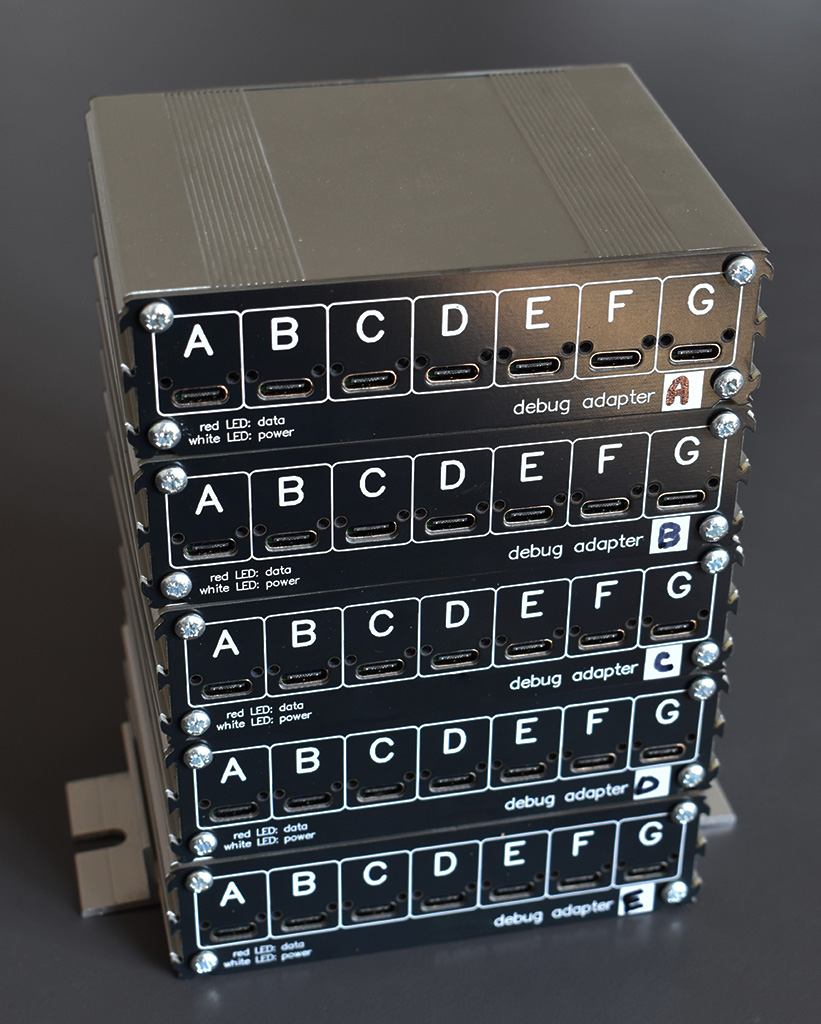

Cased V1 Debug Adapter

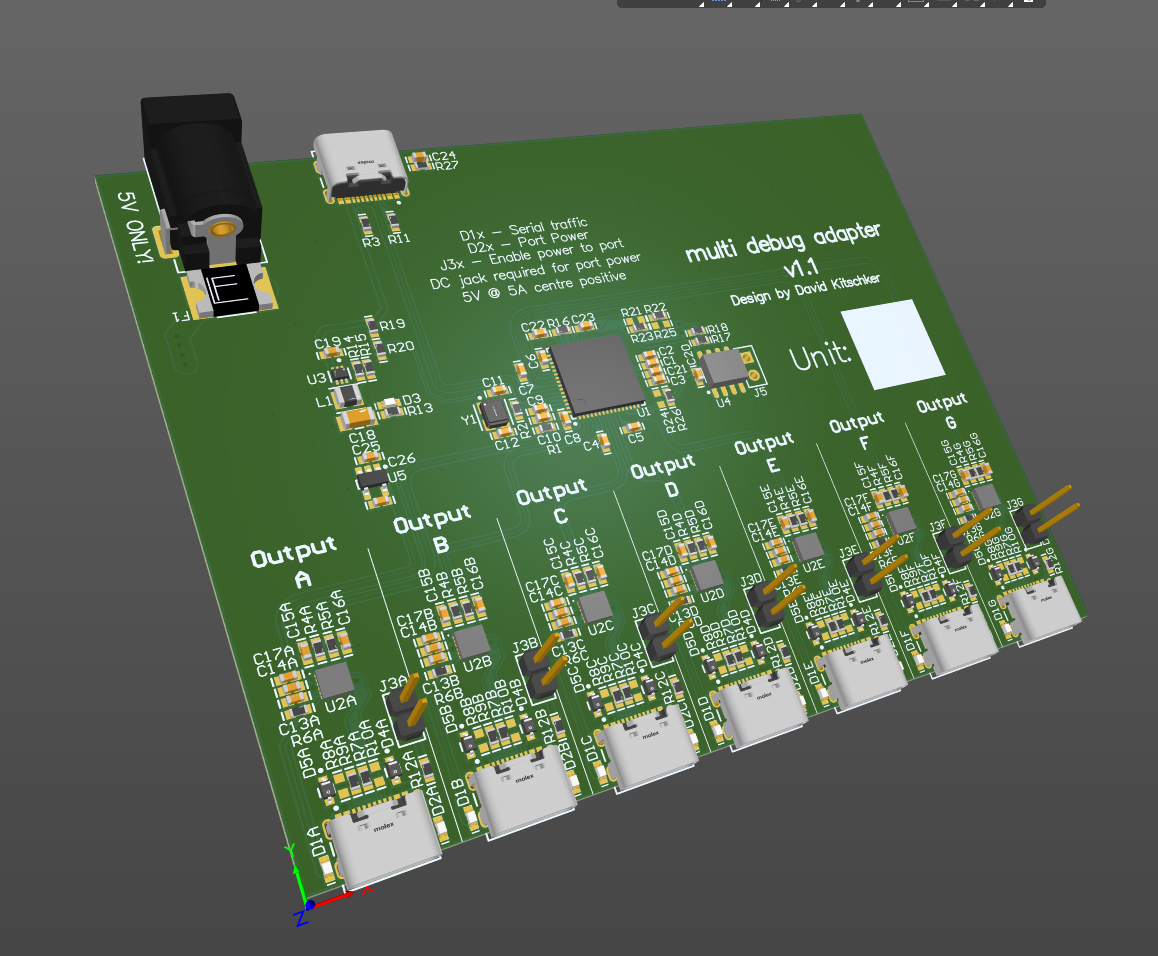

Altium PCB Design
Debug Adapter V2

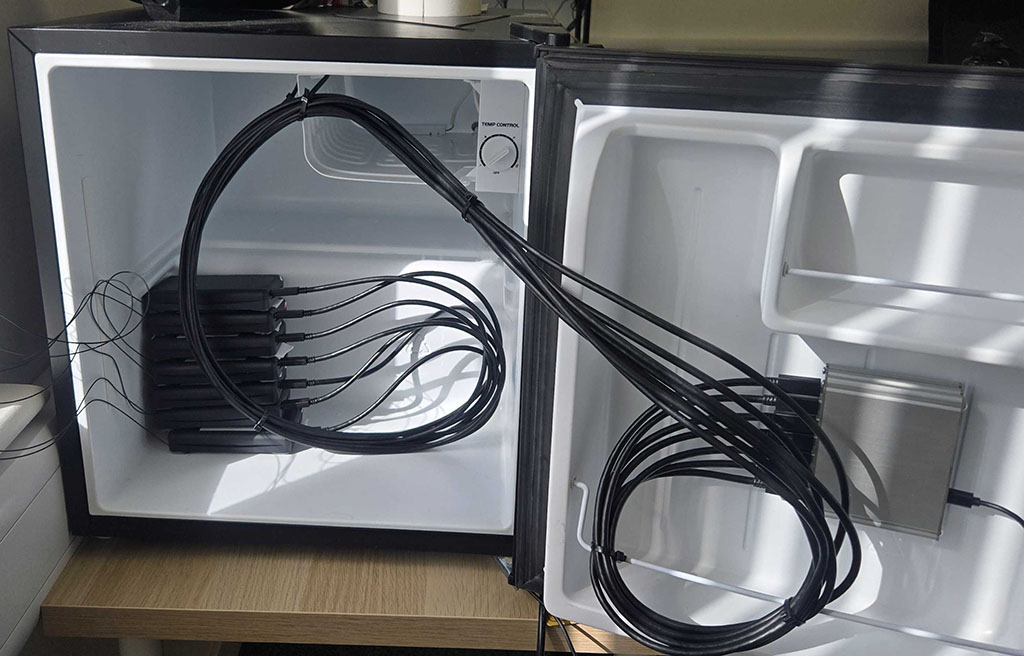

Makeshift environmental testing of devices using debug adapter
